The secondary lock is a housing securing mechanism (second locking mechanism) that secures all wires in one contact housing. If a secondary lock is installed at a contact housing, it must always be opened or removed using specified tool before releasing and pulling out individual crimp contacts.

Secondary lock is distinguished by a different color from the rest of the contact housing. It simplifies recognizing the secondary lock and clarifies its function.

The shapes of the terminal housings depicted here are only a selection which, as an example, should make clear the various functions of the secondary lock.

Example 1

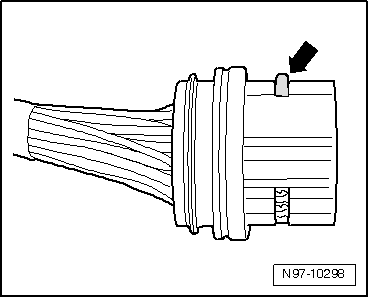

Housing securing mechanism is released by removing a "comb"-arrow-.

Example 2

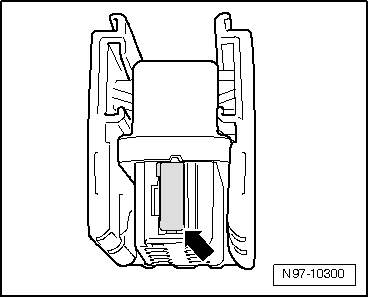

Housing securing mechanism is released by opening a "flap"-arrow-.

Example 3

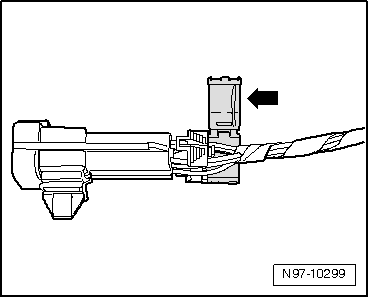

Housing securing mechanism can be released by disengaging a "slider"-arrow-.

Releasing and Disassembly Contact Housings, General Information

Note Observe general notes for repairs on the vehicle electrical system. Refer to → Chapter "Vehicle Electrical System, General Repair ...
